Where are you now:Home > Products > Mini DP Cable > Mini DP to DP Mini DP to DP

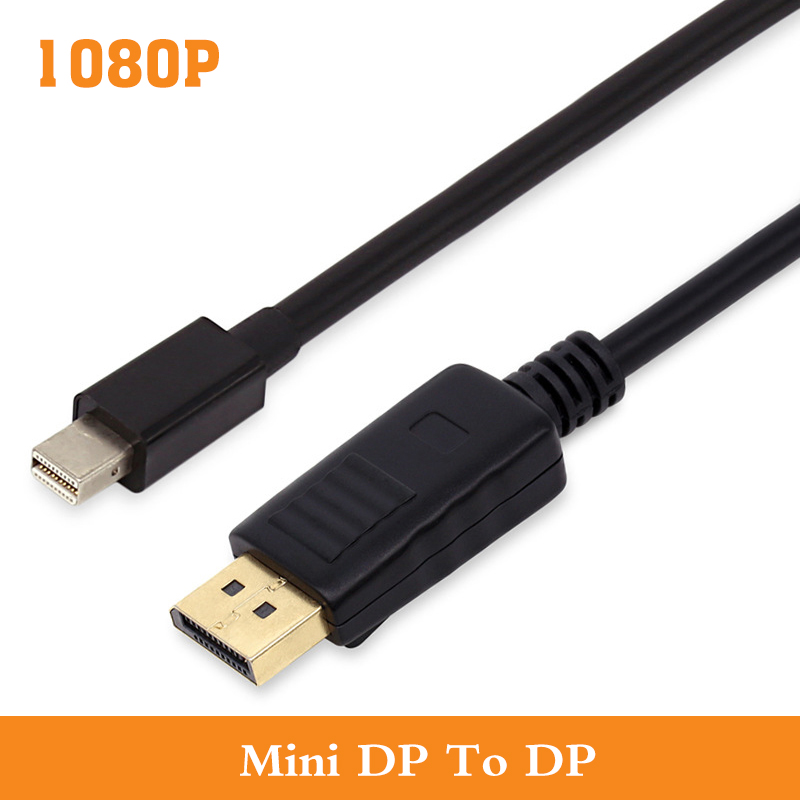

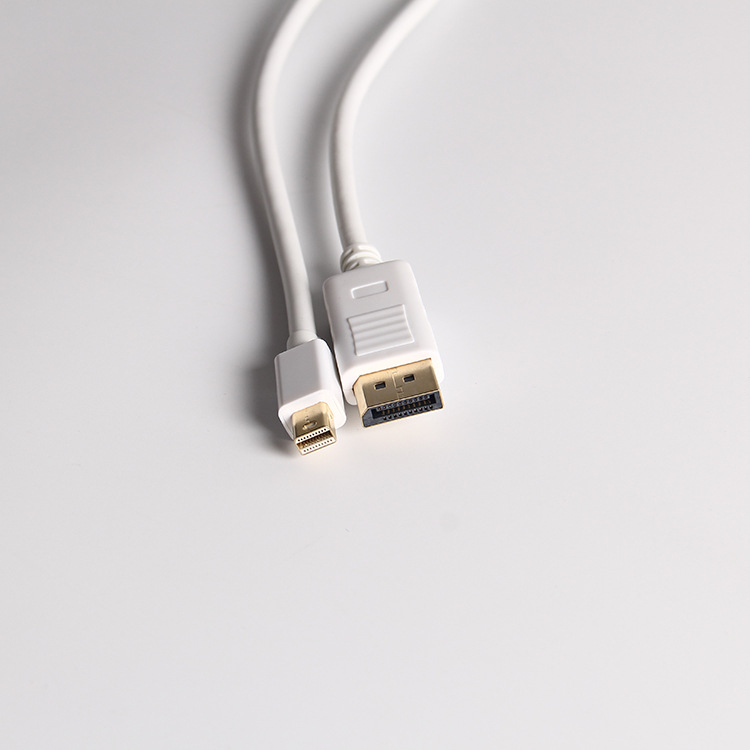

Mini DP to DP

Model No.:MDP104A
Resolution:1080P 60HZ
Cable spec:32AWG   OD5.0mm
Length:3ft, 6ft, 10ft, 15ft (Optional)
Color:White or Black

分辨率:1080P 60HZ
线材规格:32AWG  OD5.0mm
线材长度: 0.2M, 0.5M,1M,1.8M,3M,5M, 10M (可选择)
颜色:黑色或白色

Detailed introduction

1.Support MiniDisplayPort 1.1 input and DP1.1 output.

2.Support DP highest video resolution 1920*1080p.

3.Support DP 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.

4.Support DP 12bit per channel (36bit all channel) deep color.

5.Powered from  DisplayPort source

6.Jacket Material: PVC

7.Connector :Gold-plated or Nickel-plated

8.Colour: White or Black

9.Length: 1M or customized

功能: 将MiniDP(输入)信号转成DP(输出)信号

线材规格:优质PVC材料,线身柔软,不易氧化32AWG(1/0.20BC*2C+AL)*4P+1/0.20BC*6C+AL PVC  OD5.0mm

分辨率:1920*1080P   60HZ

即插即用,无需驱动,无需外接电源

连接器接口:镀金或 镀镍

支持设备:支持所有带DP输出接口的设备,如:液晶电视,投影仪,显示器等

使用范围:家庭、书房、客厅、卧室、会议、教育、娱乐等

产品颜色:黑色/白色

线长:1M 或可定制
