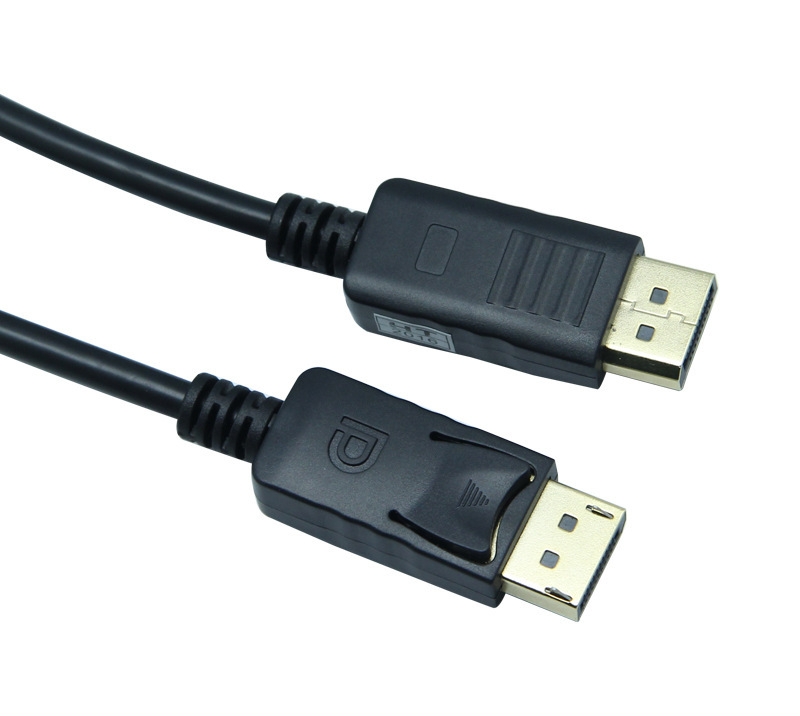

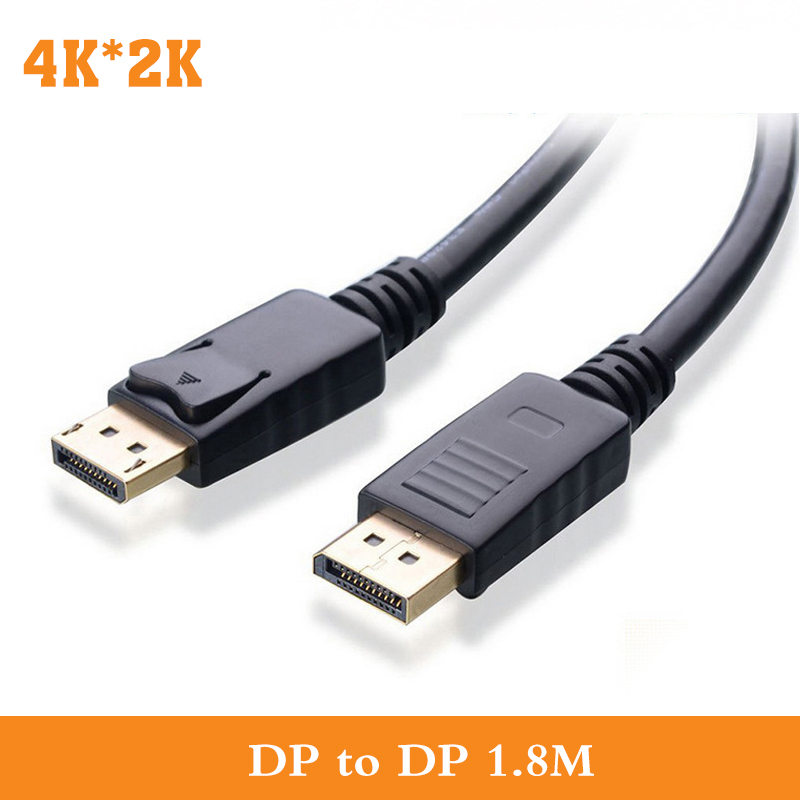

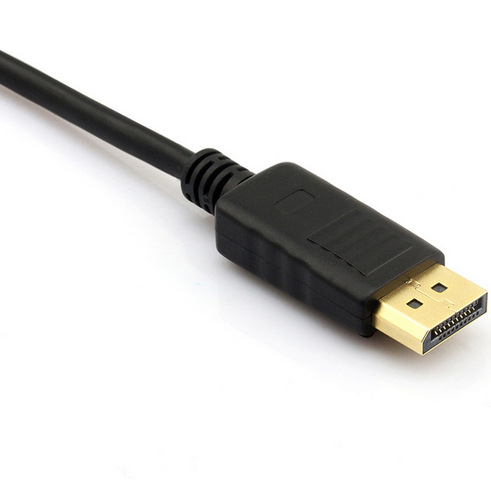

DP to DP cable converter 4K*2K

Model No.:DP404A
Resolution:4K*2K  60HZ
Cable spec:30AWG  OD6.0mm
Length:3ft, 6ft, 10ft, 15ft (Optional)
Color:White or Black

分辨率:4K*2K  60HZ
线材规格:30AWG OD6.0mm
线材长度: 0.2M, 0.5M,1M,1.8M,3M,5M, 10M (可选择)
颜色:黑色或白色

Detailed introduction

1.Support DisplayPort 1.2 input and DP1.2 output.

2.Support Ultra HD 4Kx2K, 3D and synchronous audio and video.

3.Support DP 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.

4.Support DP 12bit per channel (36bit all channel) deep color.

5.Powered from  DisplayPort source

6.Jacket Material: PVC

7.Connector :Gold-plated or Nickel-plated

功能: 将 DP(输入)信号转成 DP(输出)信号

线材规格:优质PVC材料,线身柔软,不易氧化

30AWG(7/0.08TS*1P+1C+AL+MY)*5C+7/0.08TS*5C+AL+7/0.127BS+96B/0.12AM   OD6.0mm

线材长度: 0.2M, 0.5M,1M,1.8M,3M,5M, 10M (可选择)

分辨率: 3840*2160    60HZ

即插即用,无需驱动,无需外接电源

连接器接口:镀金或 镀镍

支持设备:支持所有带Mini DP 输出接口的设备,如:液晶电视,投影仪,显示器等

使用范围:家庭、书房、客厅、卧室、会议、教育、娱乐等
