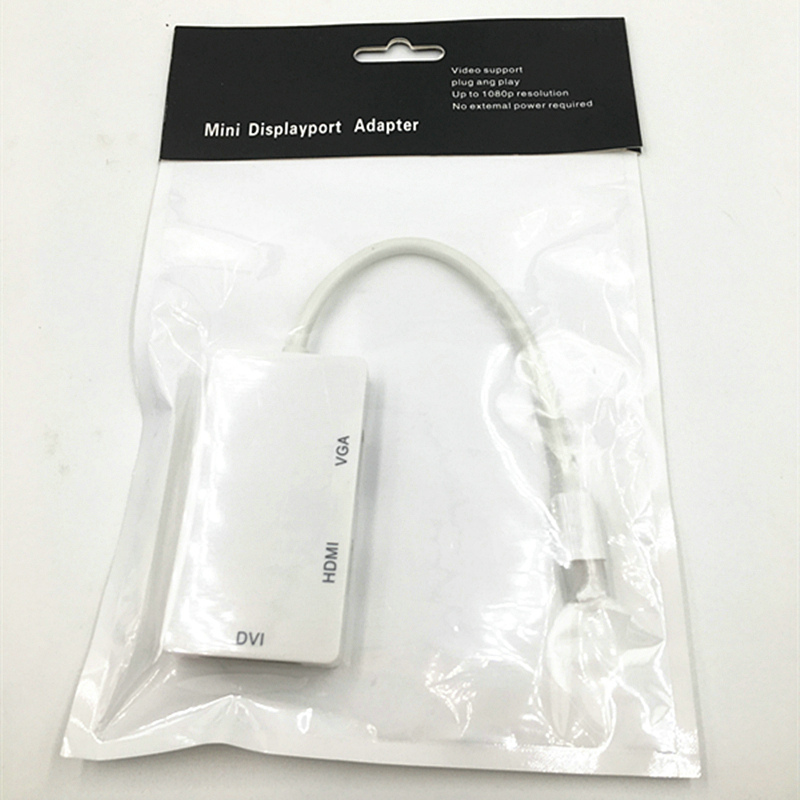

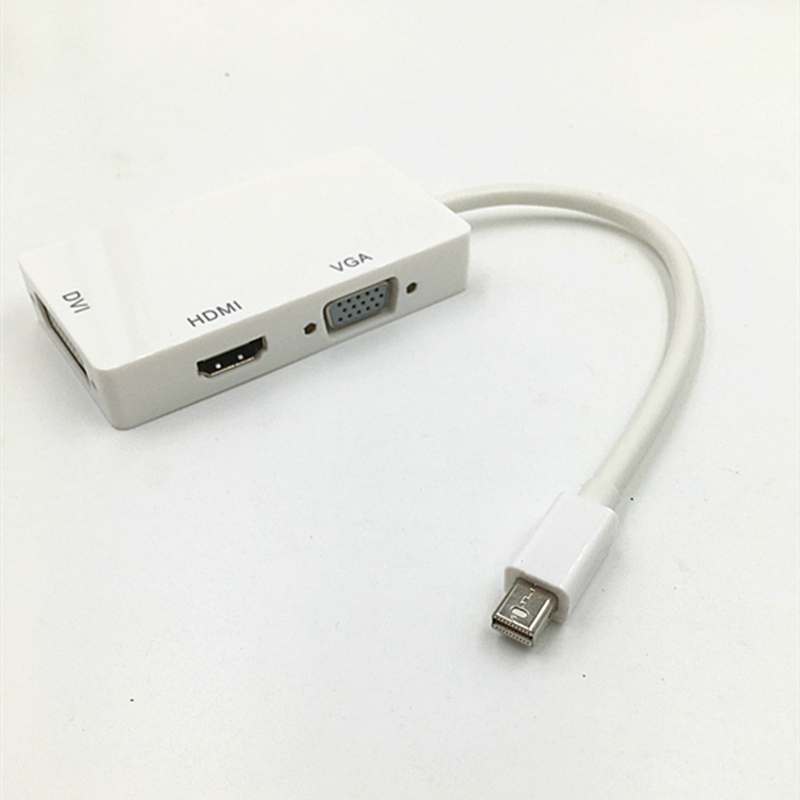

3 in 1 Mini displayport to HDMI /DVI/VGA 1080P

Model No.:Model No.:MDP301A
Resolution:1080P 60HZ
Cable spec:32AWG   OD5.0mm
Length:1ft
Color:White or Black

分辨率:1080P 60HZ
线规:32AWG   OD5.0mm
线长:1ft
颜色:白色或黑色

Detailed introduction


Product features:

1. The maximum resolution is 1080P / 60Hz, which can reach up to 3 meters.
2. Support mini DisplayPort 1.2, support 1.62 and 2.7 Gbps transmission bandwidth.
3. Support HDMI/DVI - D for each channel 12bit depth
4. This product conforms to the VESA specification
5. HDMI each channel supports 2.25 Gbps transmission bandwidth
6. HDMI supports 5.1 channel transmission (for MAC)
7. Enable/close TMDS power mode
8. Direct connection, plug and play, without any setting


Product specification:
1.The highest resolution of HDMI is 1920 x 1080 60Hz

2. The highest resolution of DVI - D/VGA is 1920 x 1200 60Hz
3. HDMI video supports each channel 2.25 Gbps / 225MHZ transmission bandwidth
4. DVI - D video supports each channel 2.7 Gbps / 270MHZ transmission bandwidth

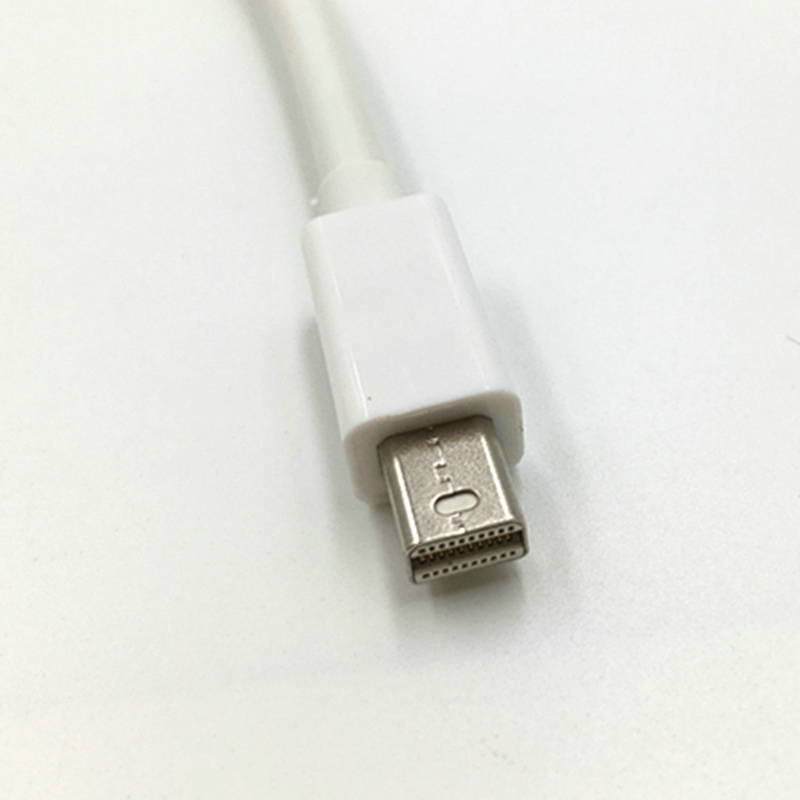

5. Input interface: Mini DisplayPort 20pin

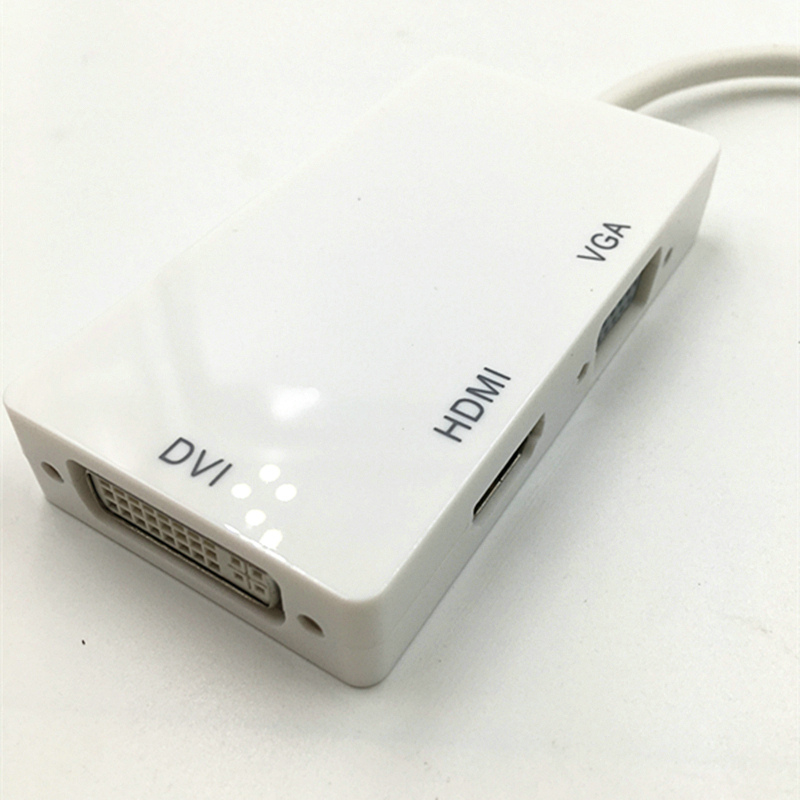

6. Output interface: HDMI/DVI - D/VGA masterhead (same time can only be exported to an interface)
7. The working temperature: 0 ° C to + 70 ° C
8. Work humidity: 10% to 85 % RH
9. Line length: about 15cm
10. Product weight (net weight) : 0.05 kg

The output interface supports resolution
HDMI
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
DVI -D
1280 x 1024, 1360 x 768, 1920 x 1080, 1920 x 1200

VGA
1024 x 768, 1280 x 1024, 1680 x 1050, 1920 x 1080


产品特点:
1.分辨率最高支持1080P/60Hz,传输距离最高可达3米。

2.支持 mini DisplayPort 1.2版,支持1.62及2.7Gbps传输频宽。

3.支持HDMI/DVI-D每个通道12bit的色深

4.本产品符合VESA规范

5.HDMI每个通道支持2.25Gbps传输频宽

6.HDMI支持5.1声道传输(适用于MAC)

7.支持启用/关闭TMDS省电模式

8.直接连接,即插即用,不需作任何设定

产品规格

1.HDMI分辨率最高支持1920 x 1080 60Hz2.DVI-D/VGA分辨率最高支持1920 x 1200 60Hz

3.HDMI视讯支持每个通道2.25Gbps/225MHZ传输频宽

4.DVI-D视讯支持每个通道2.7Gbps/270MHZ传输频宽

5.输入界面:Mini DisplayPort 20pin 公头

6.输出界面:HDMI/DVI-D/VGA母头(同时间只能输出到一个界面)

7.工作温度:0°C to +70°C

8.工作湿度:10% to 85 % RH

9.线长:约15cm10.产品重量(净重):0.05kg

输出界面支持分辨率

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

DVI-D

1280 x 1024, 1360 x 768, 1920 x 1080, 1920 x 1200

VGA

1024 x 768,1280 x 1024, 1680 x 1050, 1920 x 1080
