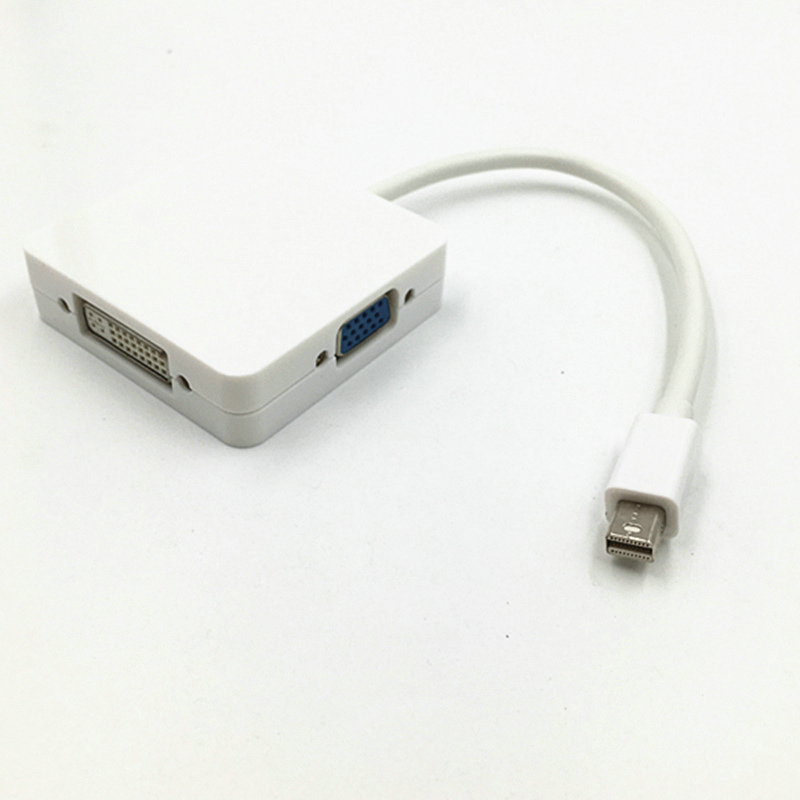

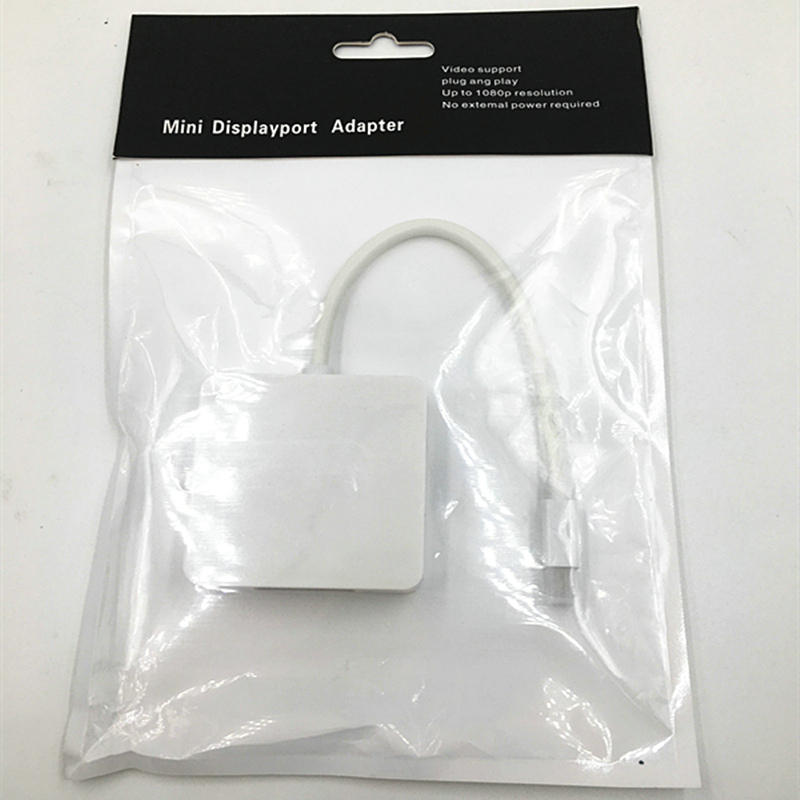

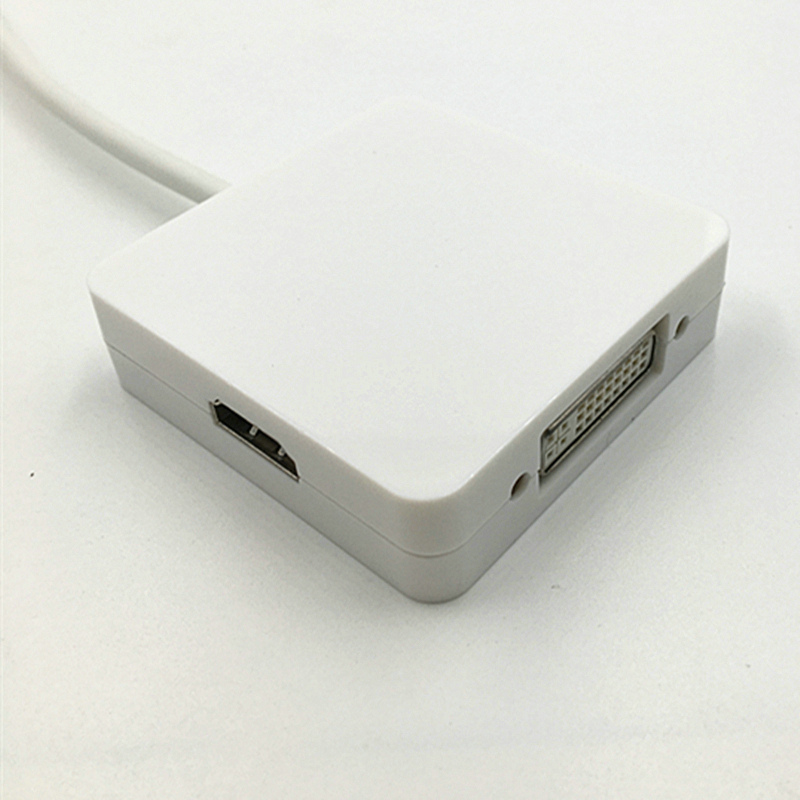

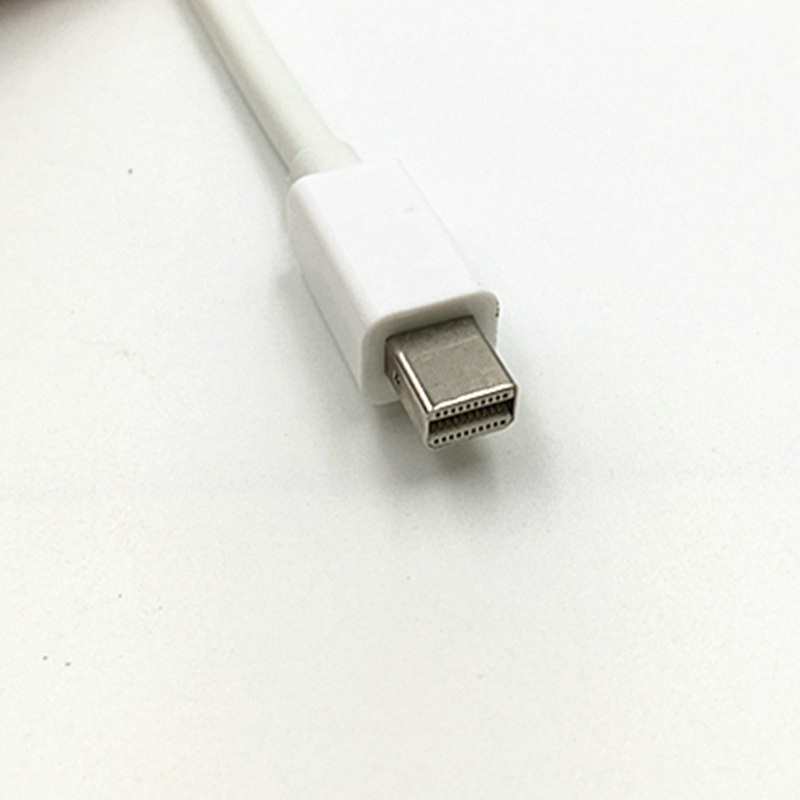

3 in 1 Mini displayport to HDMI+DP+DVI 1080P

Model No.:MDP301B
Resolution:1080P 60HZ
Cable spec:32AWG   OD5.0mm
Length:1ft
Color:White or Black

分辨率:1080P 60HZ
线规:32AWG   OD5.0mm
线长:1ft
颜色:白色或黑色

Detailed introduction


Function:

1.This Adapter is for mini DP connect DP HDMI DVI port ,support TV and projector audio and video synchronization

For apple computer mini DP port or  thunderbolt port, connect DP /HDMI /DVI port 's display, TV, projector

This product is 100% support for thunderbolt interface and can be used in Windows system.

Mini Displayport 3 in 1 is a new product , which can replace the single adapter Mini DP to DP/Mini DP to DVI;Mini DP to HDMI three lines.
Only single interface display when working;Not three interfaces simultaneously online display.
This product cannot be transferred from DVI to VGA to the display with VGA interface

Support Mini DisplayPort to convert DVI (the mouth is 24 + 5) (no more VGA) + HDIMI + Displyaport

Maximum resolution: 1920x1080P (DVI - hdmi-displayport)

Supports one-way, single channel

Support the Mini DisplayPort 1.2 input and HDMI1.3 output/DVIoutput/Displayportoutput

HDMI sound function: the laptop mini displayport interface from June 2010 will have audio output function.

Compatible:
MB413/MB418/MB420/MB466/MB467/MB470/MB471/MB543/MB604/
MB940/MB985/MB986/MB990/MB991/
MC024/MC026/MC118/MC207/MC226/MC233/MC234/MC413
MC503/MC504/MC505/MC506/MC508/MC509/MC510/MC511/MC516/
MC700/MC721/MC723/MC724/MC725/
MC812/MC813/MC814/MC847/MC950/MC965/MC966/MC968/MC969
Lenvo:ThinkPad X1 t430 x230
Dell:xps14z/xps15/xps15z/xps17
all mini displayport and other laptop


用于台式机显卡mini DP口,连接DP HDMI DVI口显示器、电视、投影仪,支持音视频同步

用于苹果电脑mini DP口或雷电接口,连接DP HDMI DVI口显示器、电视、投影仪
本产品100%支持雷电接口(thunderbolt接口)并能在window系统下使用。
Mini Displayport一托三是联基厂最新开发出来的产品,用这一条线,就可以代替mini DP to DP;mini DP to DVI; mini DP to HDMI三条线,即经济又方便。工作时只能单一接口显示;不能三接口同时在线显示!此产品不可以通过DVI转VGA转换头再转到有VGA接口的显示器
支持Mini DisplayPort转DVI(口是24+5)(不能再转VGA)+ HDIMI+Displyaport
最高分辨率:1920x1080P (DVI –HDMI- Displayport
支持单向、单通道
支持Mini DisplayPort 1.2 input and HDMI1.3 output /DVIoutpu/Displayportoutpu
HDMI口声音功能: 2010年6之月后出厂的笔记本mini displayport接口就有声音输出功能!
适用机型:
MB413/MB418/MB420/MB466/MB467/MB470/MB471/MB543/MB604/
MB940/MB985/MB986/MB990/MB991/
MC024/MC026/MC118/MC207/MC226/MC233/MC234/MC413
MC503/MC504/MC505/MC506/MC508/MC509/MC510/MC511/MC516/
MC700/MC721/MC723/MC724/MC725/
MC812/MC813/MC814/MC847/MC950/MC965/MC966/MC968/MC969
联想:ThinkPad X1 t430 x230
戴尔:xps14z/xps15/xps15z/xps17
所有mini displayport口显卡与其它笔记本
